उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
270डी एलसी 270डी
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |

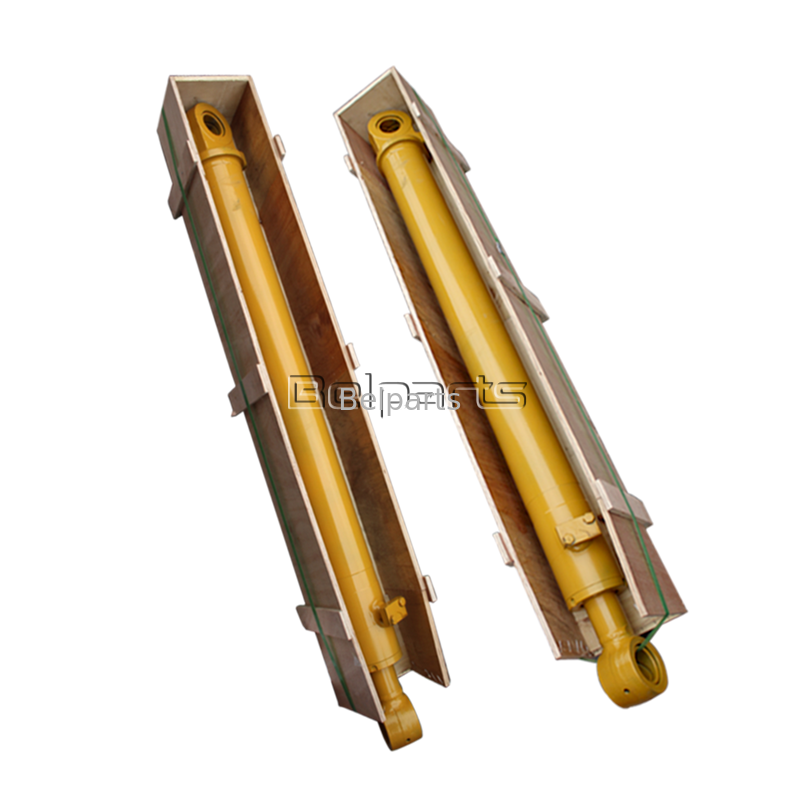

Premium aftermarket Stick/Arm (Dipper) Hydraulic Cylinder PN:9246544G, direct replacement for John Deere 270D,270D LC excavator, also compatible with 290G LC machine. It controls arm stretch & retraction for digging, trenching and bulk loading. Strictly produced per OEM dimension, same port position and pin size for direct bolt-on installation without modification; cross alternative part:9309807G.
| Item | Details |
|---|---|
| Product Name | Hydraulic Arm/Stick Cylinder |
| Fit Model | John Deere 270D,270D LC,290G LC |
| OEM No. | 9246544G(Alternative:9309807G) |
| Grade | High quality aftermarket new cylinder |
| Certification | ISO9001,CE |
| Net Weight | 703.52KG |
| Warranty | 12 months |
| MOQ | 1PC |
| Spec | Data |
|---|---|
| Bore Size | 145mm |
| Piston Rod Dia. | 100mm |
| Working Stroke | 1265mm |
| Rated Working Pressure | 34.5MPa(5000PSI) |
| Factory Test Pressure | 51.8MPa(7500PSI) |
| Barrel Material | ST52 seamless forged alloy steel |
| Rod Treatment | Medium carbon steel + hard chrome plating 28~35μm,HRC68-70 |
| Seal Set | Imported PU+NBR composite seal,anti high temp & hydraulic oil corrosion |
| Working Temp | -25℃~+85℃ |
| Design Service Life | ≥8000 working hours |
| Mount Type | Double pin connection with hardened steel bushing |
Our factory specializes in Deere series excavator hydraulic cylinder more than 10 years, covering boom/arm/bucket aftermarket cylinders for D/G/LC series models, products widely exported to USA, Europe, Africa, Southeast Asia market with stable aftersales service.
