उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
ZX27U-2-3 ZX30U-2-3 ZX35U-2-3
| Application | Excavator |

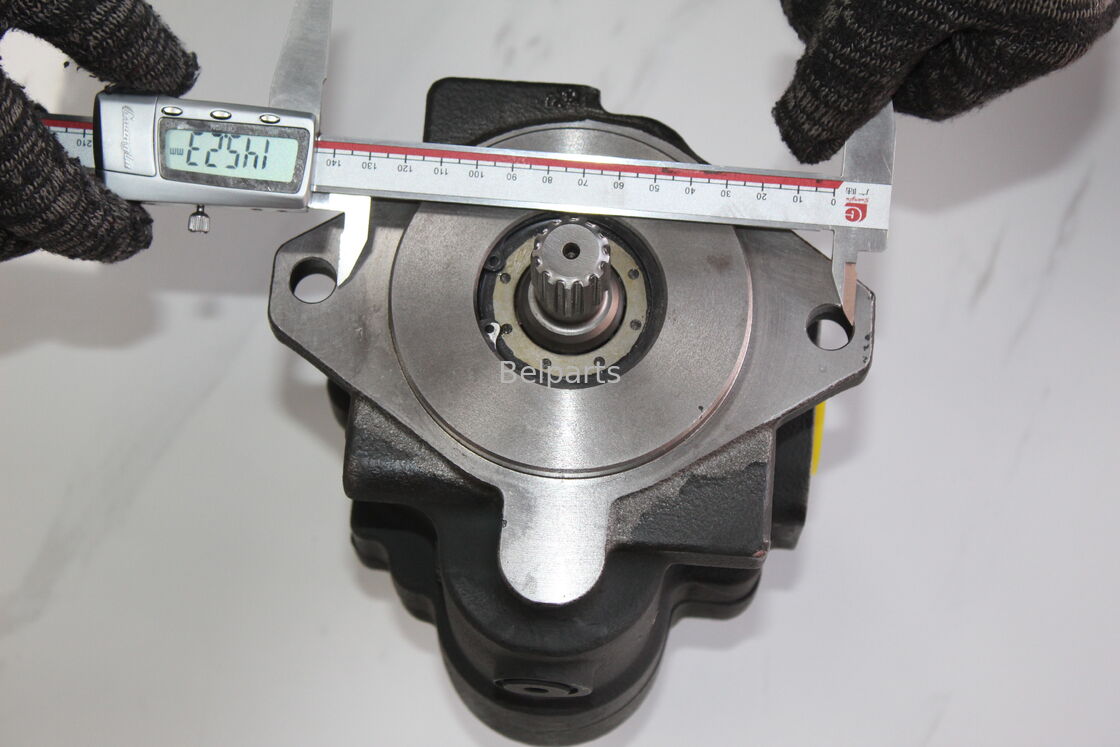

| Part Name | Hydraulic Piston Pump |
| Model | ZX27U-2-3, ZX30U-2-3, ZX35U-2-3 |
| Part Number | 4642385, 4642386, 4466791, 4605638, 4699382 |
| Type | PVD-1B-32P-11G5 |
| Warranty | 12 months |
| Delivery Time | 3-7 Days |
| Shipment | Express/Freight/Sea/Train |
| Quality | Original Brand New |
| MOQ | 1 Piece |
| Payment Term | T/T, Trade Assurance, PayPal, etc. |
| Category | Construction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| 4466791 | PUMP; PISTON | 1 | |
| 1 | ---- | BODY | 1 |
| 2 | ---- | BODY | 1 |
| 3 | 0733201 | SHAFT | 1 |
| 4 | ---- | BLOCK | 1 |
| 5 | ---- | PLATE; VALVE | 1 |
| 6 | ---- | PISTON | 10 |
| 7 | ---- | SHOE | 10 |
| 8 | 0733202 | HOLDER; SHOE | 1 |
| 9 | 0630604 | HOLDER | 1 |
| 10 | 0749301 | PLATE; SWASH | 1 |
| 11 | 0655905 | NEEDLE | 3 |
| 12 | 0647307 | PIN | 2 |
| 13 | 0477001 | PACKING | 1 |
| 14 | 0655906 | SPRING | 1 |
| 15 | 0733204 | SPRING | 1 |
| 18 | 0733205 | HOLDER; SPRING | 1 |
| 19 | 0733206 | GUIDE; SPRING | 1 |
| 20 | 0429816 | PIN | 1 |
| 21 | 0749302 | ROD | 1 |
| 24 | 0630614 | RETAINER | 2 |
| 25 | 0733208 | PIN; STOPPER | 1 |
| 26 | 0847401 | PIN; STOPPER | 1 |
| 27 | 0733209 | PIN | 1 |
| 30 | 0477002 | BRG.; BALL | 1 |
| 31 | 0429818 | BRG.; NEEDLE | 1 |
| 32 | 0630618 | SEAL; OIL | 1 |
| 33 | 0647314 | SPRING | 4 |
| 34 | 991722 | RING; RETAINING | 1 |
| 35 | 446751 | RING; RETAINING | 1 |
| 36 | 942517 | RING; RETAINING | 1 |
| 39 | 957366 | O-RING | 1 |
| 40 | 4506412 | O-RING | 2 |
| 42 | 0733210 | PLUG | 1 |
| 43 | 957366 | O-RING | 1 |
| 44 | 0429824 | BOLT; SOCKET | 5 |
| 49 | 0429712 | PLUG | 5 |
| 51 | 0733210 | PLUG | 1 |
| 56 | 0429826 | PIN; SPRING | 1 |
| 60 | 0630508 | SCREW | 1 |
| 61 | 0630509 | NUT | 1 |
| 62 | 0630510 | WASHER; SEAL | 1 |
| 65 | 0749304 | PUMP; GEAR | 1 |
| 65 | 0847402 | PUMP; GEAR | 1 |
| 66 | 0749305 | COUPLING | 1 |
| 67 | 0733213 | COLLAR | 1 |
| 68 | 0749306 | BOLT | 2 |
| 69 | 4506407 | O-RING | 1 |
| 70 | 0749307 | WASHER | 2 |
| 71 | 0733215 | O-RING | 1 |
| 72 | 4506408 | O-RING | 1 |
| 100 | 0749308 | KIT; PISTON | 1 |
| 101 | 0733217 | PISTON ASS'Y | 1 |
| 102 | 0733218 | KIT; SEAL | 1 |
| Pos. | Part No | Qty | Parts Name |
|---|---|---|---|
| 4668462 | 1 | PUMP;PISTON | |
| 1 | +++++++ | 1 | BODY |
| 2 | +++++++ | 1 | BODY |
| 3 | 1184901 | 1 | SHAFT |
| 4 | +++++++ | 1 | CYL. |
| 5 | +++++++ | 1 | PLATE |
| 6 | +++++++ | 1 | PISTON |
| 7 | +++++++ | 1 | SHOE |
| 8 | +++++++ | 1 | HOLDER |
| 9 | +++++++ | 1 | HOLDER |
| 10 | 1184902 | 1 | PLATE;SWASH |
| 11 | 1184903 | 1 | PISTON |
| 12 | 1184904 | 1 | PLUG |
| 13 | 1184905 | 1 | HOLDER |
| 14 | 1184906 | 1 | HOLDER;SPRING |
| 15 | 1184907 | 1 | PLATE;THRUST |
| 16 | +++++++ | 2 | RETAINER |
| 17 | +++++++ | 3 | NEEDLE |
| 18 | 0473906 | 2 | PIN |
| 19 | 0630621 | 2 | PIN |
| 20 | 0429816 | 1 | PIN |
| 21 | +++++++ | 1 | SPRING |
| 22 | 1184908 | 1 | SPRING |
| 23 | 1184909 | 1 | SPRING |
| 24 | 1184910 | 2 | BUSHING |
| 25 | 1184911 | 1 | BRG.;BALL |
| 26 | +++++++ | 1 | BRG.;NEEDLE |
| 27 | 988850 | 1 | RING;RETAINING |
| 28 | 1184912 | 2 | RING;RETAINING |
| 29 | +++++++ | 1 | RING;RETAINING |
| 30 | 0630617 | 1 | ORIFICE |
| 31 | 0429825 | 1 | SCREW |
| 32 | 1184913 | 8 | BOLT;SOCKET |
| 33 | 1184914 | 4 | BOLT;SOCKET |
| 34 | 0664917 | 1 | PLUG |
| 35 | 0630505 | 3 | PLUG |
| 36 | 1184915 | 1 | SEAL;OIL |
| 37 | +++++++ | 7 | PLUG |
| 38 | 4506408 | 4 | O-RING |
| 39 | 957366 | 3 | O-RING |
| 40 | 984614 | 1 | O-RING |
| 41 | 4125485 | 1 | O-RING |
| 42 | A811050 | 1 | O-RING |
| 43 | A811075 | 1 | O-RING |
| 44 | A811125 | 1 | O-RING |
| 45 | +++++++ | 1 | FILTER |
| 46 | 4693312 | 1 | VALVE |
| 47 | 4693315 | 1 | PUMP;GEAR |
| 48 | 0749305 | 1 | COUPLING |
| 49 | 0971003 | 1 | COLLAR |
| 50 | 0749306 | 2 | BOLT |
| 51 | 0749307 | 2 | WASHER |
| 52 | 4506407 | 1 | O-RING |
| 53 | 4506408 | 1 | O-RING |
| 54 | A811055 | 1 | O-RING |
| 90 | 4693313 | 1 | KIT;CYL. |
| 100 | 4693314 | 1 | KIT;SEAL |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
