उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
बॉबकैट E32 E35 E37

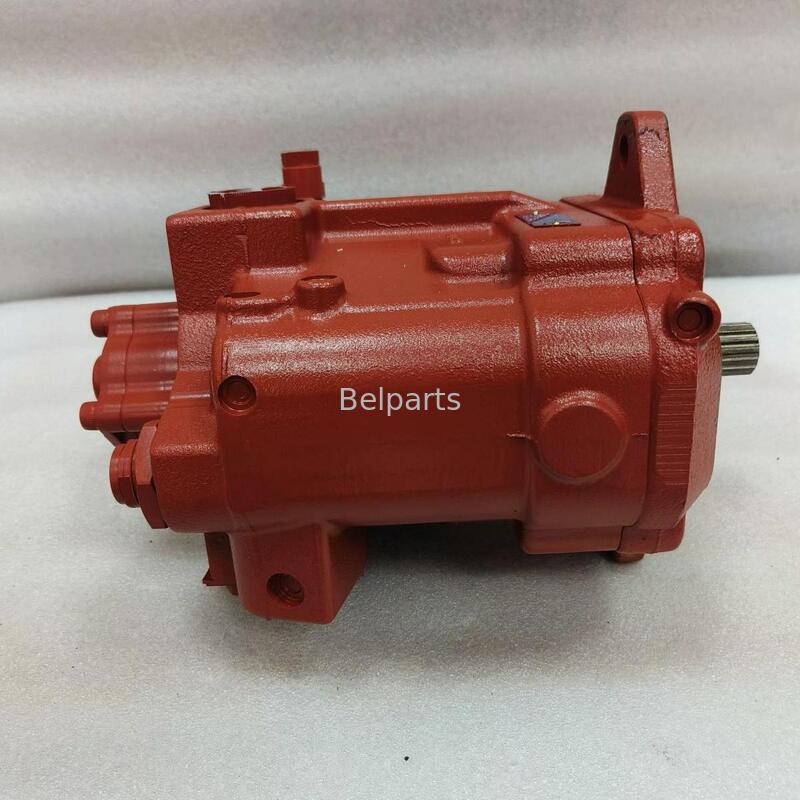

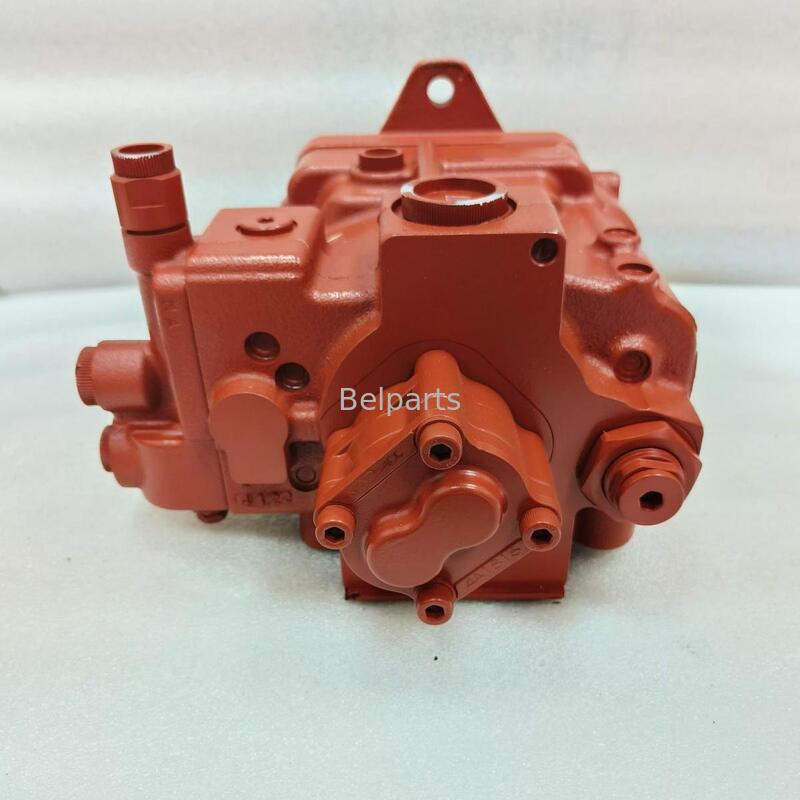

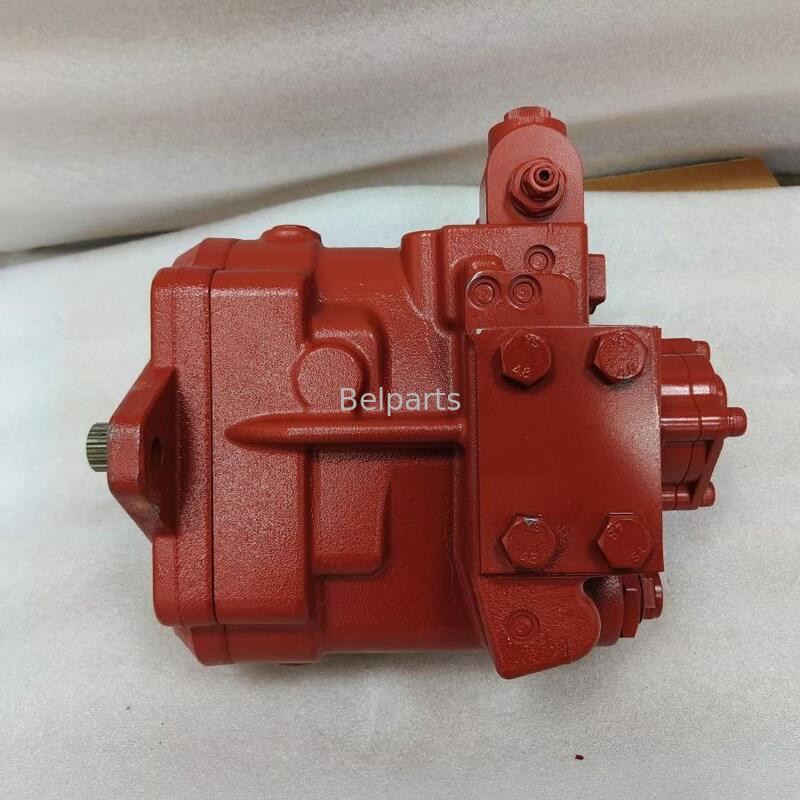

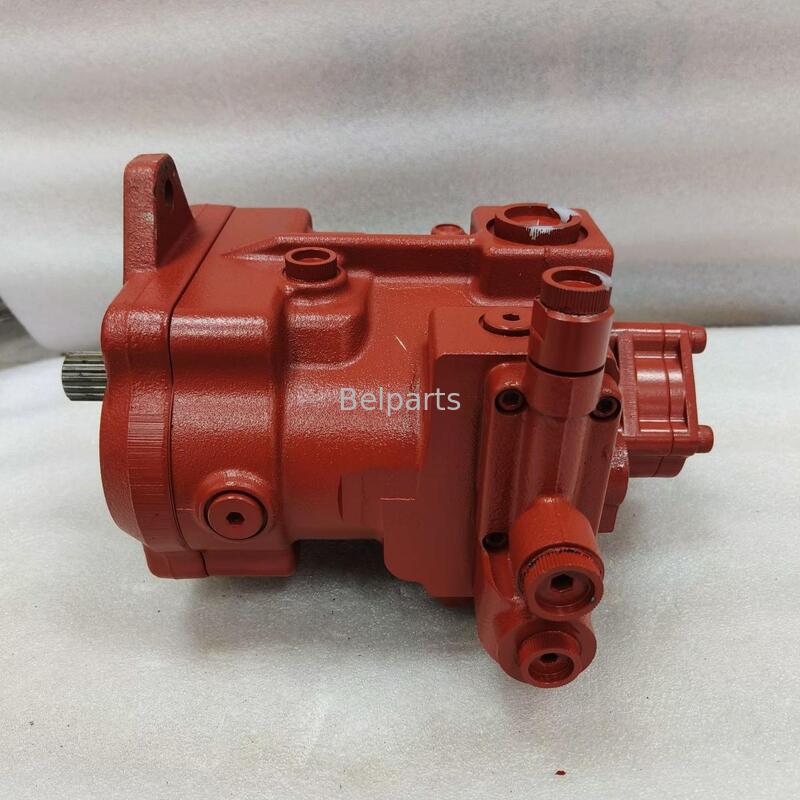

BOBCAT E32 E35 E37 Hydraulic Pump for Mini Excavator Parts 7025227 B0610-42017 OEM PSVL-42CG Main Piston Pump
|
Application
|
Excavator
|
|
Part name
|
Main Hydraulic Pump
|
|
Type
|
PSVL-42CG
|
|
Model
|
BOBCAT E32 E35 E37
|
|
Parts number
|
7025227 B0610-42017
|
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Original Brand New OEM
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 7025227 | PUMP HYDRAULIC PISTON; Ref. 2-45 - Was 7010279 | 1 |
| 2 | ---- | CASE; NSS | 1 |
| 3 | 7009604 | BEARING NEEDLE | 1 |
| 4 | ---- | FLANGE; NSS | 1 |
| 5 | 7009605 | BEARING NEEDLE | 1 |
| 6 | 7009606 | SEAL, OIL | 1 |
| 7 | 7009607 | RING, SNAP | 1 |
| 8 | 7009608 | STOP | 1 |
| 9 | 7009609 | SHAFT | 1 |
| 10 | 7009610 | WASHER, THRUST | 1 |
| 11 | 7009611 | WASHER, THRUST | 1 |
| 12 | 7009612 | GASKET | 1 |
| 13 | 6653019 | PIN | 3 |
| 14 | 7009613 | O-RING | 1 |
| 15 | 7010672 | BUSHING; Was 7009614 | 2 |
| 16 | 7009615 | SCREW | 2 |
| 17 | 7009616 | PLATE, VALVE | 1 |
| 18 | ---- | PLATE, SWASH; NSS - Order Ref. 49 | 1 |
| 19 | ---- | PIN; NSS - Order Ref. 49 | 1 |
| 20 | 7009617 | STOP | 1 |
| 21 | 7009643 | O-RING | 1 |
| 22 | 7009641 | BOLT | 4 |
| 23 | 7009628 | PUMP GEAR | 1 |
| 24 | ---- | PIN; NSS - Order Ref. 49 | 1 |
| 25 | 7009642 | PIN | 1 |
| 26 | 7009632 | BOLT | 4 |
| 27 | 7397201 | WASHER FLAT; Was 7009630 | 2 |
| 28 | 7009629 | BOLT | 2 |
| 29 | 7010271 | CYLINDER ASSEMBLY | 1 |
| 30 | 7009619 | PIN | 1 |
| 31 | 7009618 | O-RING | 6 |
| 32 | 7009620 | PLUG | 13 |
| 33 | 7009621 | ORIFICE | 1 |
| 34 | 7009180 | O-RING | 1 |
| 35 | 7009622 | SPRING | 1 |
| 36 | 7009623 | SPRING | 1 |
| 37 | 7009624 | SEAT, SPRING | 1 |
| 38 | 7370602 | LIMITER TORQUE; Was 7009625 | 1 |
| 39 | 7009179 | PLUG | 1 |
| 40 | 7009647 | PIN | 1 |
| 41 | ---- | ORIFICE; NSS - Order Ref. 49 | 1 |
| 42 | 7009646 | O-RING | 1 |
| 43 | 7009627 | NUT | 1 |
| 44 | 7010270 | VALVE ASSY | 1 |
| 45 | 7009645 | O-RING | 1 |
| 46 | 7010234 | KIT SEAL; Ref. 31, 34 | 1 |
| 47 | 7009966 | KIT SEAL; Ref. 21, 23, 24, 31, 34, 42, & 45 | 1 |
| 48 | 7010272 | KIT SWASH PLATE; Ref. 18, 19, 24, 32 & 41 | 1 |
| 49 | 7009968 | KIT SEAL; Ref. 6, 12 & 31 |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Why Choose Us?
Process Features
About Factory
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
