उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
JS110 JS130 JS150LC JS130W JS150W
| Application | Excavator |
|---|---|

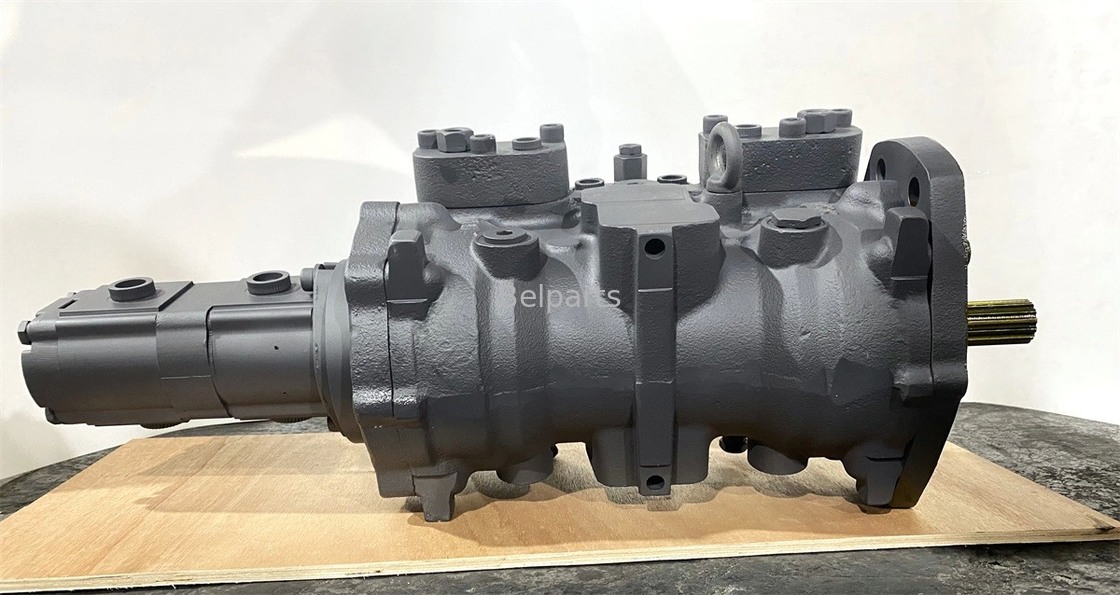

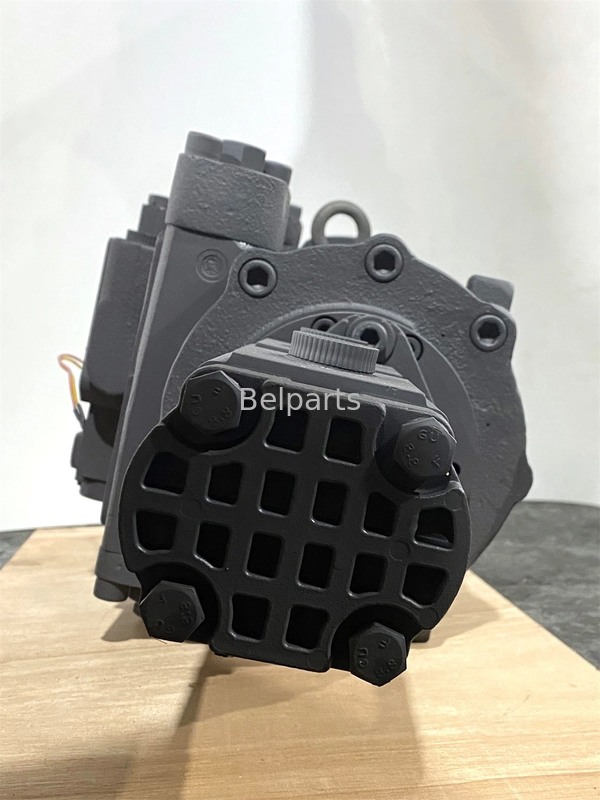

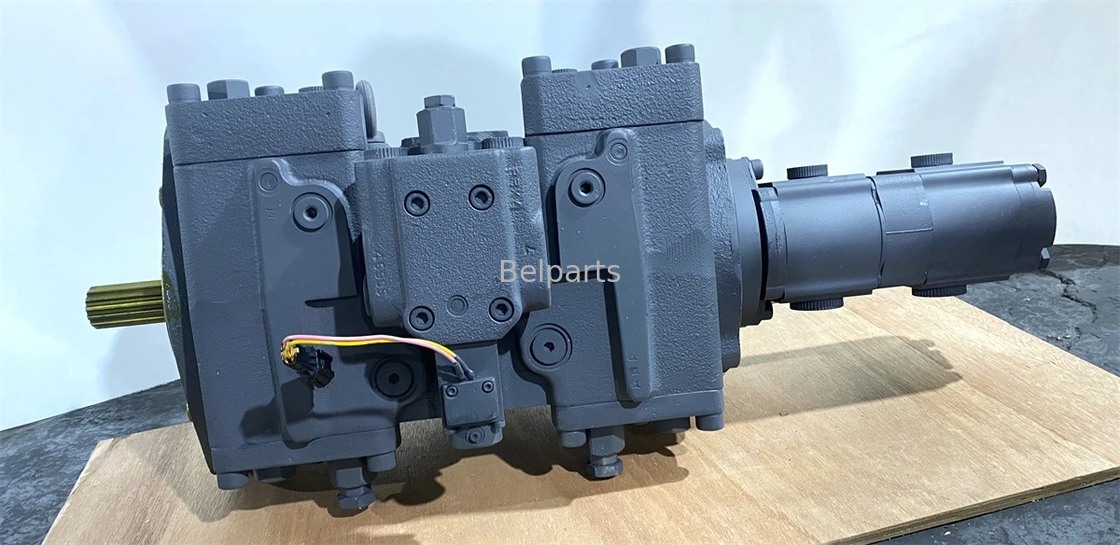

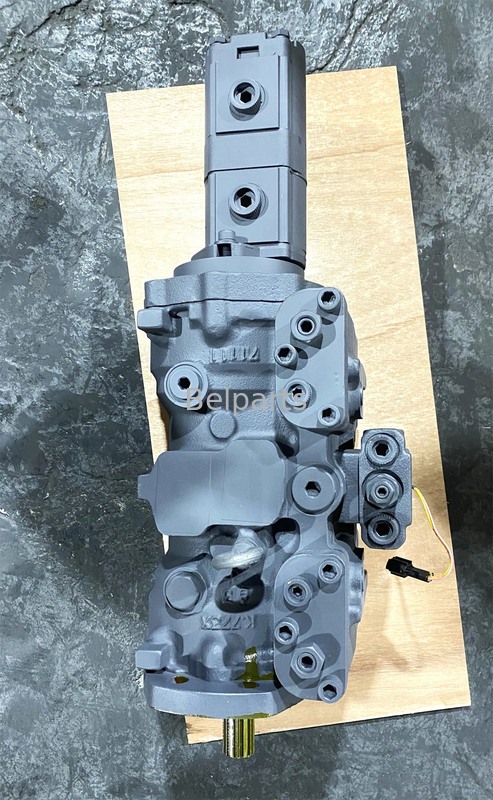

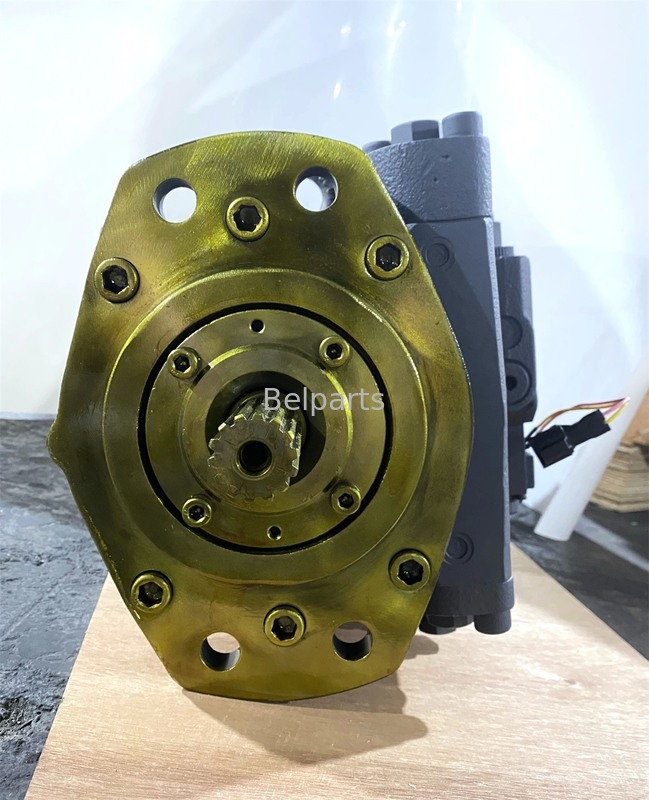

| Part name | Hydraulic Main pump |
| Machine model | JS110 JS130 JS150LC JS130W JS150W |
| Part number | KNJ1025 KLJ0493 KLJ0001 JLJ0231 |
| Warranty | 6 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand Rebuild |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 13-16A | LBB0122 | Ring, back-up | 2 |
| 53 | LJP0027 | Shaft, front | 1 |
| 34-3 | N.S.P. | None serviced part | 1 |
| 13-7 | LZP0109 | Cover, pilot, pump | 1 |
| 24 | LBB0253 | Ring, back-up | 2 |
| 56 | LMP0161 | Spacer | 2 |
| 31 | 6004/3203 | Capscrew | 4 |
| A | KNJ1025 | Pump, hydraulic | 1 |
| 43 | LZP0110 | Body, port | 1 |
| 46 | LMP0180 | Collar | 2 |
| 47 | LBQ1251 | O Ring | 2 |
| 62 | LZP0102 | Casing, oil, seal | 1 |
| 34 | LNP0089 | Cylinder, assembly | 1 |
| 35 | LZP0104 | Casing | 1 |
| 58 | 370A0350Z | Ring, snap | 2 |
| 36-2 | N.S.P. | None serviced part | 9 |
| 13-11 | 6004/3311 | Capscrew | 4 |
| 13-6 | LBQ0701 | O Ring | 1 |
| 15 | LZP0108 | Cover, regulater | 2 |
| 50 | LBQ0182 | O Ring | 3 |
| 18 | LUP0069 | Nut | 4 |
| 51 | KRP0401 | Plug | 3 |
| 7 | 6004/3308 | Capscrew | 8 |
| 64 | LZP0112 | Flange, mounting | 1 |
| 13-12 | LDP0033 | Shaft, gear | 1 |
| 5 | LBB0152 | Ring, back-up | 2 |
| 52-2 | N.S.P. | None serviced part | 1 |
| 10 | LLP0079 | Plug | 2 |
| 14 | 1391/3409Z | Capscrew, M10 x 35mm | 4 |
| 26 | LUP0068 | Capscrew | 8 |
| 6 | LBQ0152 | O Ring | 2 |
| 34-2 | N.S.P. | None serviced part | 1 |
| 20 | LBQ0082 | O Ring | 1 |
| 13-10 | LKP0024 | Bush | 1 |
| 13-9C | N.S.P. | None serviced part | 1 |
| 33 | LZP0103 | Casing | 1 |
| 42 | LTP0035 | Bearing, inner race | 2 |
| 27 | LPP0049 | Piston, regulater | 2 |
| 13-3 | LLP0082 | Plug | 1 |
| 39 | LMP0164 | Pin | 4 |
| 63 | 6004/3709 | Capscrew | 4 |
| 2 | LTP0032 | Bearing, roller | 4 |
| 52-1 | N.S.P. | None serviced part | 1 |
| 28 | LUP0087 | Screw | 8 |
| 11 | N.S.P. | None serviced part | 10 |
| 9 | LBQ0112 | O Ring | 2 |
| 36 | N.S.P. | None serviced part | 1 |
| 22 | LMP0156 | Pin | 2 |
| 8 | LBQ0253 | O Ring | 4 |
| 29 | LDP0036 | Plate, gear pivot | 4 |
| 30 | LKP0026 | Bush, slide | 2 |
| 4 | LSP0082 | Seat, spring | 2 |
| 13-2 | LBQ0082 | O Ring | 1 |
| 55 | LTP0034 | Bearing, roller | 2 |
| 38 | 6004/3405 | Capscrew | 4 |
| 13-5 | LMP0156 | Pin | 2 |
| 12 | KXJ0106 | Capscrew | 8 |
| 13 | LNP0099 | Pump, pilot | 1 |
| 13-9 | LNP0136 | Casing, pilot, pump | 1 |
| 32 | LMP0162 | Stay | 2 |
| 17 | LUP0072 | Screw | 4 |
| 34-1 | N.S.P. | None serviced part | 9 |
| 44 | LCP0027 | Coupling | 1 |
| 48 | LSP0083 | Seat, spring | 2 |
| 36-1 | N.S.P. | None serviced part | 1 |
| 40 | LJP0028 | Shaft, rear | 1 |
| 13-17 | N.S.P. | None serviced part | 1 |
| 13-9A | N.S.P. | None serviced part | 1 |
| 1 | LDP0035 | Guide, gear assembly | 4 |
| 13-16B | LBQ0120 | O Ring | 1 |
| 13-14 | LKP0025 | Bush | 2 |
| 54 | LBU0005 | O Ring | 2 |
| 25 | LMP0160 | Stop | 2 |
| 13-9B | LDP0031 | Gear, drive | 1 |
| 57 | LBQ0701 | O Ring | 1 |
| 45 | LTP0033 | Bearing, needle | 2 |
| 13-16C | LBQ0182 | O Ring | 1 |
| 19 | LZP0111 | Plate, swash, pump | 2 |
| 13-18 | LBQ0092 | O Ring | 3 |
| 61 | LAP0019 | Seal, oil | 1 |
| 21 | LLP0082 | Plug | 1 |
| 16 | 6004/3305 | Capscrew | 8 |
| 52 | LNP0088 | Retainer, holder, assembly | 1 |
| 13-16 | LNP0086 | Valve, relief | 1 |
| 60 | LMP0165 | Ring, snap | 1 |
| 41 | LBQ0092 | O Ring | 7 |
| 23 | LMP0157 | Pin | 10 |
| 13-8 | LBP0050 | O Ring | 1 |
| 59 | LZP0105 | Flange | 1 |
| 14 | 6004/3409 | Capscrew | 4 |
| 36 | LNP0090 | Cylinder, assembly | 1 |
| 37 | LZP0121 | Cover, rear | 1 |
| 49 | LSP0081 | Kit-spring | 2 |
| 3 | LZP0120 | Cap | 2 |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
