उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
EX17U EX17
| Application | Excavator |

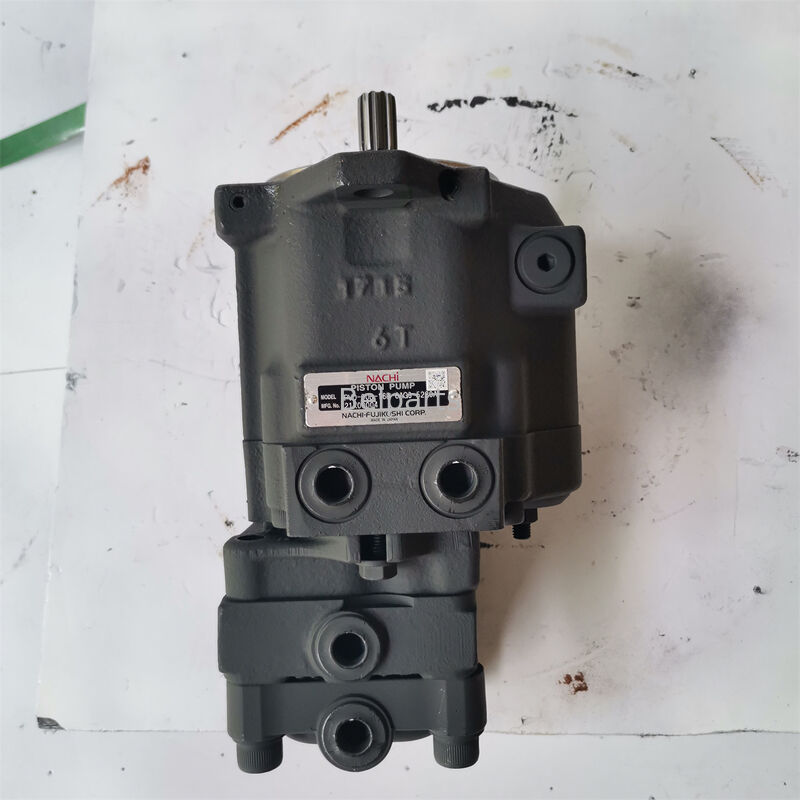

| Part Name | Hydraulic Main Pump |
| Machine Model | EX17U EX17 |
| Part Number | 4438709 |
| Type | PVD-00B-16P-6AG3 |
| Warranty | 12 Months |
| Delivery Time | 3-7 Days |
| Shipment | Express, Freight, Sea, Train |
| Quality | Original Brand New |
| Engine | 3TNV74 |
| MOQ | 1 Piece |
| Payment Terms | T/T, Trade Assurance, PayPal, etc. |
| # | Part No. | Description | Qty |
|---|---|---|---|
| 4438709 | PUMP; PISTON | 1 | |
| 1 | ---- | . BODY | 1 |
| 2 | ---- | . BODY | 1 |
| 3 | 0768201 | . SHAFT | 1 |
| 4 | ---- | . BLOCK | 1 |
| 5 | ---- | . PLATE; VALVE | 1 |
| 6 | ---- | . PISTON | 10 |
| 7 | ---- | . SHOE | 10 |
| 8 | 0768202 | . HOLDER; SHOE | 1 |
| 9 | 0768203 | . HOLDER | 1 |
| 10 | 0768204 | . PLATE; SWASH | 1 |
| 11 | 0768205 | . NEEDLE | 3 |
| 12 | 0647307 | . PIN | 2 |
| 13 | 0768206 | . PACKING | 1 |
| 14 | 0768207 | . SPRING | 1 |
| 15 | 0768208 | . SPRING | 1 |
| 18 | 0768209 | . HOLDER; SPRING | 1 |
| 19 | 0768210 | . GUIDE; SPRING | 1 |
| 20 | 0429816 | . PIN | 1 |
| 21 | 0733207 | . ROD | 1 |
| 24 | 0768211 | . RETAINER | 2 |
| 25 | 0768212 | . PIN; STOPPER | 1 |
| 27 | 0733209 | . PIN | 1 |
| 30 | 0426901 | . BRG. | 1 |
| 31 | 0768213 | . BRG.; NEEDLE | 1 |
| 32 | 0768214 | . SEAL; OIL | 1 |
| 33 | 0768215 | . SPRING | 4 |
| 34 | 0768216 | . RING; RETAINING | 1 |
| 35 | 0426904 | . RING; RETAINING | 1 |
| 39 | 957366 | . O-RING | 1 |
| 40 | 4506408 | . O-RING | 2 |
| 44 | 0768217 | . BOLT; SOCKET | 4 |
| 49 | 0429712 | . PLUG | 5 |
| 51 | 0733210 | . PLUG | 1 |
| 56 | 0426906 | . PIN; SPRING | 1 |
| 60 | 0655913 | . SCREW | 1 |
| 61 | 0630509 | . NUT | 1 |
| 62 | 0630510 | . WASHER; SEAL | 1 |
| 65 | 0768218 | . PUMP; GEAR | 1 |
| 66 | 0733212 | . CUPPLING | 1 |
| 67 | 0733213 | . COLLAR | 1 |
| 68 | 0749306 | . BOLT | 2 |
| 69 | 4506407 | . O-RING | 1 |
| 70 | 0749307 | . WASHER | 2 |
| 71 | 0733215 | . O-RING | 1 |
| 72 | 4506408 | . O-RING | 1 |
| 100 | 0768219 | KIT; PISTON | 1 |
| 101 | 0768220 | PISTON ASS'Y | 1 |
| 102 | 0768221 | KIT; SEAL | 1 |
