उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
डूसन DX17 Z DX17Z

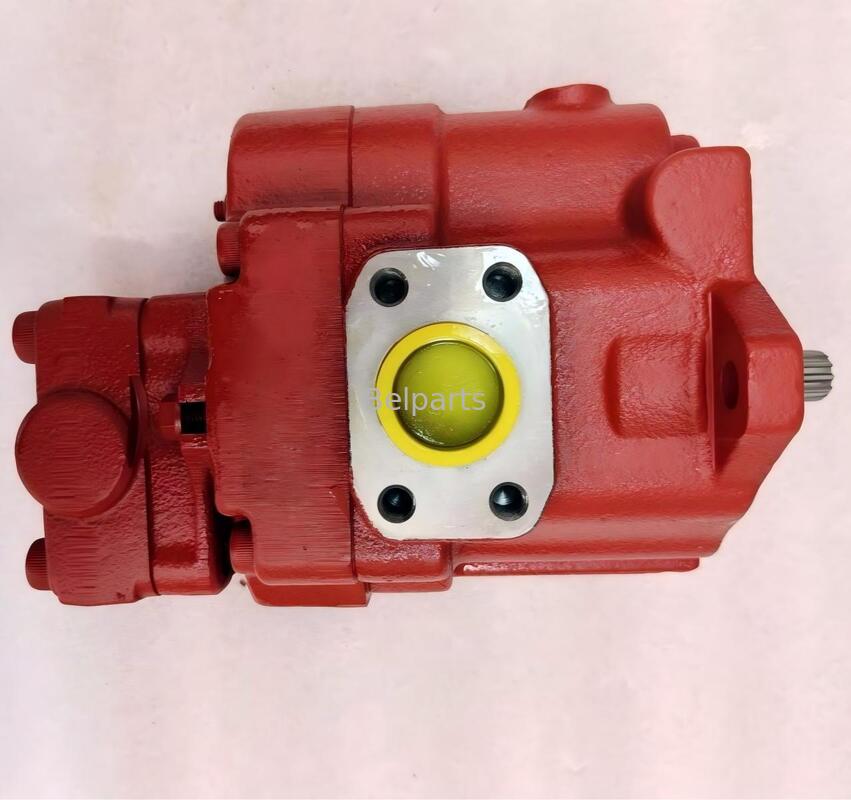

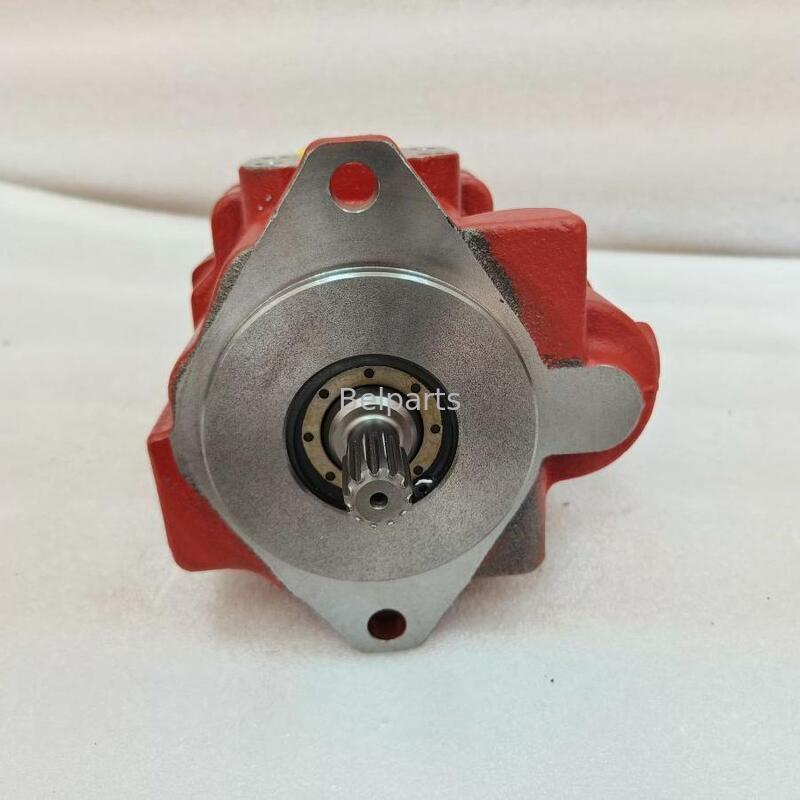

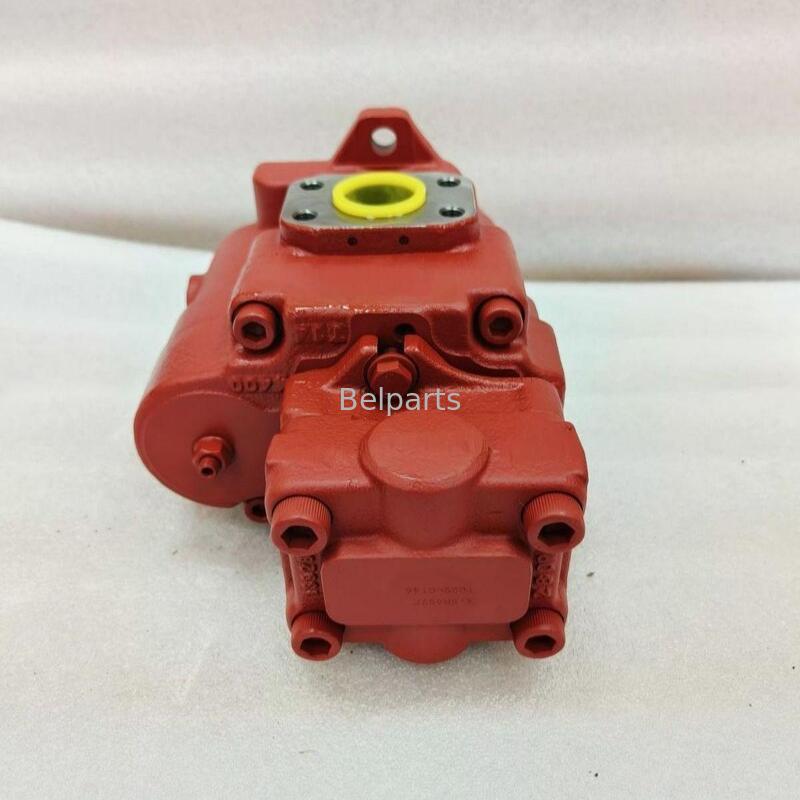

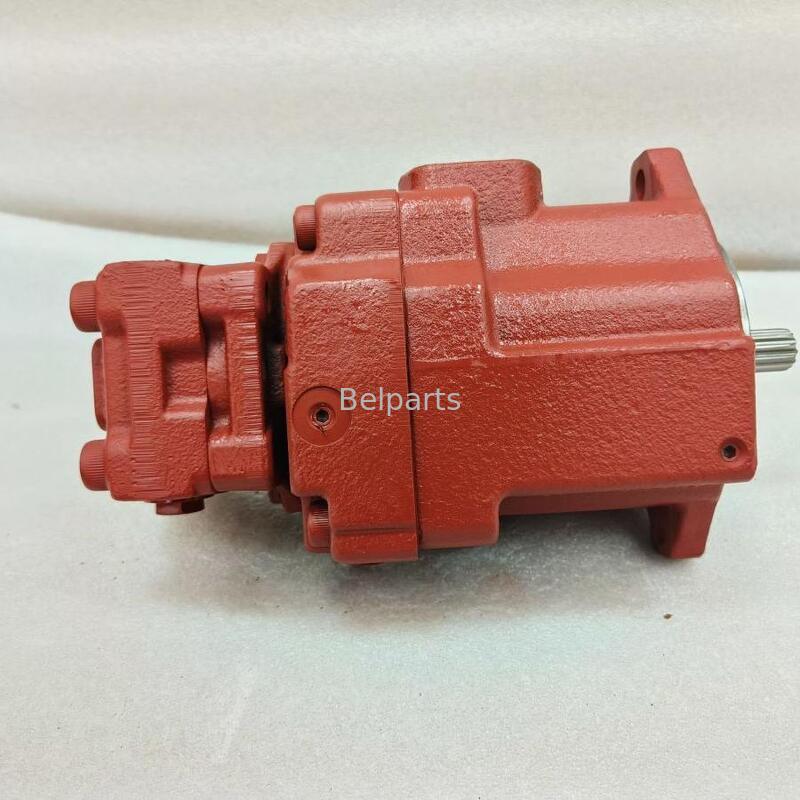

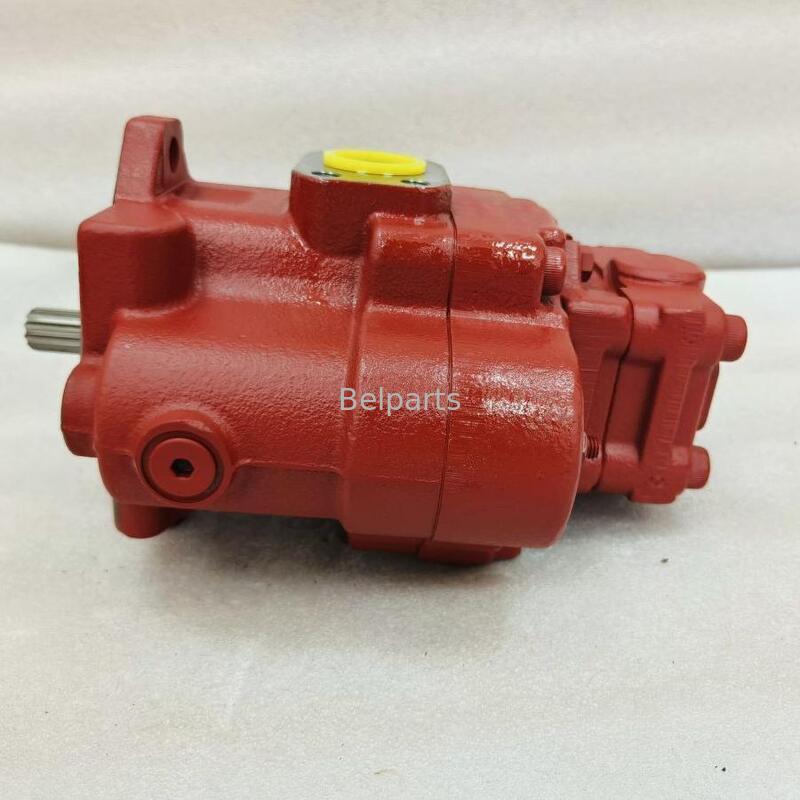

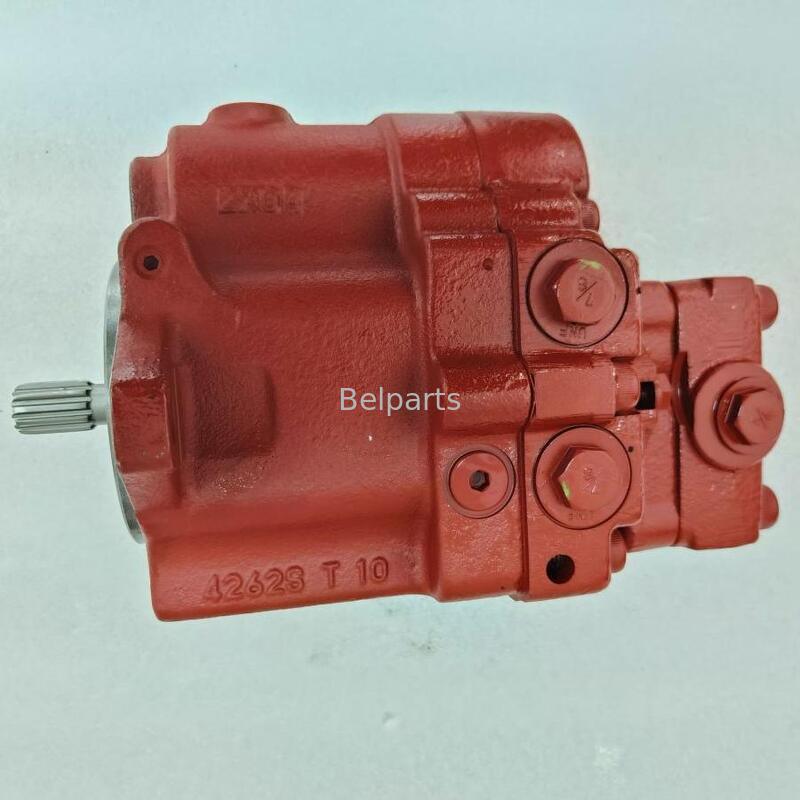

Original brand new hydraulic piston pump designed specifically for Doosan DX17 Z and DX17Z mini excavators. This high-quality replacement part ensures optimal performance and reliability for your construction machinery.
| Application | Excavator |
|---|---|
| Part Name | Hydraulic Piston Pump |
| Model | Doosan DX17 Z DX17Z |
| Type | PVD-0B-12P-5G |
| Part Number | 7172754 |
| Warranty | 12 months |
| Delivery Time | 3-7 Days |
| Quality | Original brand new |
| MOQ | 1 Piece |
| No. | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 7172754 | PUMP PISTON; Ref. 2-50 | 1 |
| 2 | ---- | BODY; NSS - Order Ref. 1 | 1 |
| 3 | ---- | BODY; NSS - Order Ref. 1 | 1 |
| 4 | ---- | SHAFT; NSS - Order Ref. 1 | 1 |
| 5 | 7012658 | SPRING C; NSS - Order Ref. 51 - Was 7012658 | 1 |
| 6 | 7012654 | BARREL, CYLINDER; NSS - Order Ref. 51 - Was 7012654 | 1 |
| 7 | 7012655 | PLATE, VALVE; NSS - Order Ref. 51 - Was 7012655 | 1 |
| 8 | 7012656 | HOLDER, SHOE; NSS - Order Ref. 51 - Was 7012656 | 1 |
| 9 | 7012657 | HOLDER, BARREL; NSS - Order Ref. 51 - Was 7012657 | 1 |
| 10 | 7012646 | NEEDLE | 3 |
| 11 | 7012647 | RETAINER; NSS - Order Ref. 51 - Was 7012647 | 2 |
| 12 | 7012659 | RING, SNAP; NSS - Order Ref. 51 - Was 7012659 | 1 |
| 13 | 7012645 | SHOE; NSS - Order Ref. 51 - Was 7012645 | 10 |
| 14 | 7012648 | PISTON; NSS - Order Ref. 51 - Was 7012648 | 10 |
| 15 | 6688539 | O-RING | 1 |
| 16 | 7012649 | FRAME | 1 |
| 17 | 7012650 | SEAL, OIL | 1 |
| 18 | 7010811 | O-RING | 1 |
| 19 | 7012651 | O-RING | 2 |
| 20 | 7010811 | O-RING | 1 |
| 21 | 7012652 | SEAL, WASHER | 1 |
| 22 | 6688538 | O-RING; NLA - .41" OD - Was 6688538 | 1 |
| 23 | 6688537 | O-RING | 1 |
| 24 | ---- | ROD; NSS - Order Ref. 1 | 1 |
| 25 | ---- | WASHER, PLATE; NSS - Order Ref. 1 | 1 |
| 26 | ---- | BALL; NSS - Order Ref. 1 | 2 |
| 27 | ---- | PIN; NSS - Order Ref. 1 | 1 |
| 28 | ---- | GUIDE, SPRING; NSS - Order Ref. 1 | 1 |
| 29 | ---- | PIN, STOPPER; NSS - Order Ref. 1 | 1 |
| 30 | ---- | PIN, STOPPER; NSS - Order Ref. 1 | 1 |
| 31 | ---- | BEARING, BALL; NSS - Order Ref. 1 | 1 |
| 32 | ---- | BEARING, NEEDLE; NSS - Order Ref. 1 | 1 |
| 33 | ---- | SPRING; NSS - Order Ref. 1 | 4 |
| 34 | ---- | RING, SNAP; NSS - Order Ref. 1 | 1 |
| 35 | ---- | RING, SNAP; NSS - Order Ref. 1 | 1 |
| 36 | ---- | PLUG; NSS - Order Ref. 1 | 1 |
| 37 | ---- | SCREW; NSS - Order Ref. 1 | 5 |
| 38 | ---- | PLUG; NSS - Order Ref. 1 | 5 |
| 39 | ---- | PLUG; NSS - Order Ref. 1 | 1 |
| 40 | ---- | PIN, SPRING; NSS - Order Ref. 1 | 1 |
| 41 | ---- | SCREW; NSS - Order Ref. 1 | 1 |
| 42 | ---- | NUT; NSS - Order Ref. 1 | 1 |
| 43 | ---- | COUPLING; NSS - Order Ref. 1 | 1 |
| 44 | ---- | COLLAR; NSS - Order Ref. 1 | 1 |
| 45 | ---- | SCREW; NSS - Order Ref. 1 | 2 |
| 46 | ---- | WASHER; NSS - Order Ref. 1 | 2 |
| 47 | ---- | GUIDE, SPRING; NSS - Order Ref. 1 | 1 |
| 48 | ---- | GUIDE, SPRING; NSS - Order Ref. 1 | 1 |
| 49 | ---- | PIN; NSS - Order Ref. 1 | 1 |
| 50 | 7012653 | PUMP GEAR; Was 6688092 | 1 |
| 51 | 6688089 | KIT CYLINDER BARREL; Ref. 5-14 | 1 |
| 52 | 6688090 | PISTON; Ref. 13-14 | 10 |
| 53 | 6688091 | KIT SEAL; Ref. 15-23 | 1 |
| 54 | 6688919 | KIT SEAL; Use W/Ref. 50 | 1 |
More Branded Accessories are Available
Rigorous testing and inspection processes ensure every part meets highest standards.
Expert craftsmanship and attention to detail in every component.
Competitive pricing without compromising on quality.
Consistent inventory and reliable delivery timelines.
Belparts operates a large workshop dedicated to excavator parts production. Our comprehensive process includes material cutting, welding, heat treating, assembling, debugging, painting, and testing - with every component thoroughly verified before leaving the factory.
