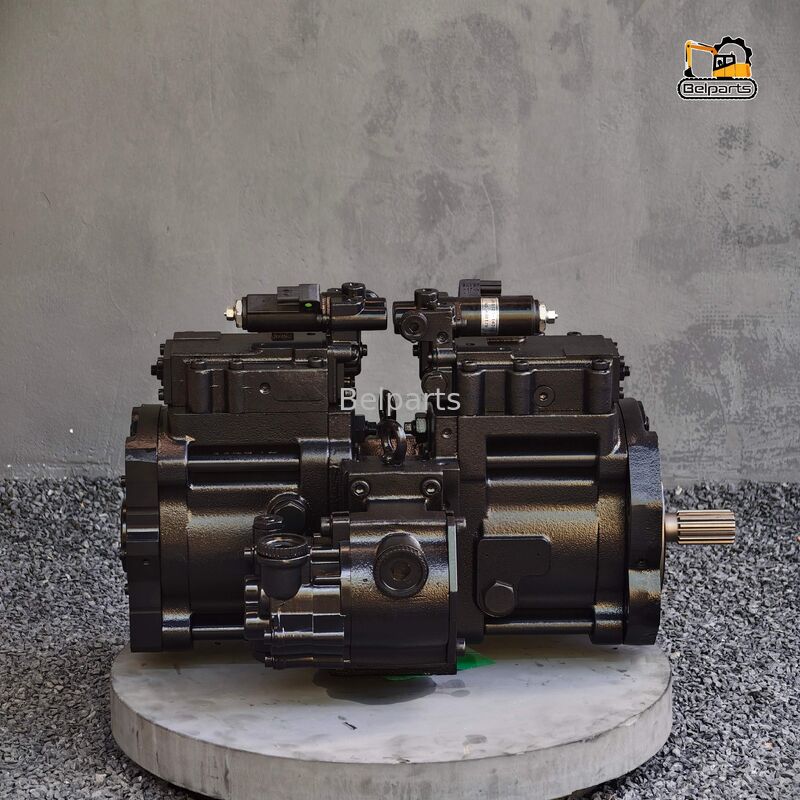

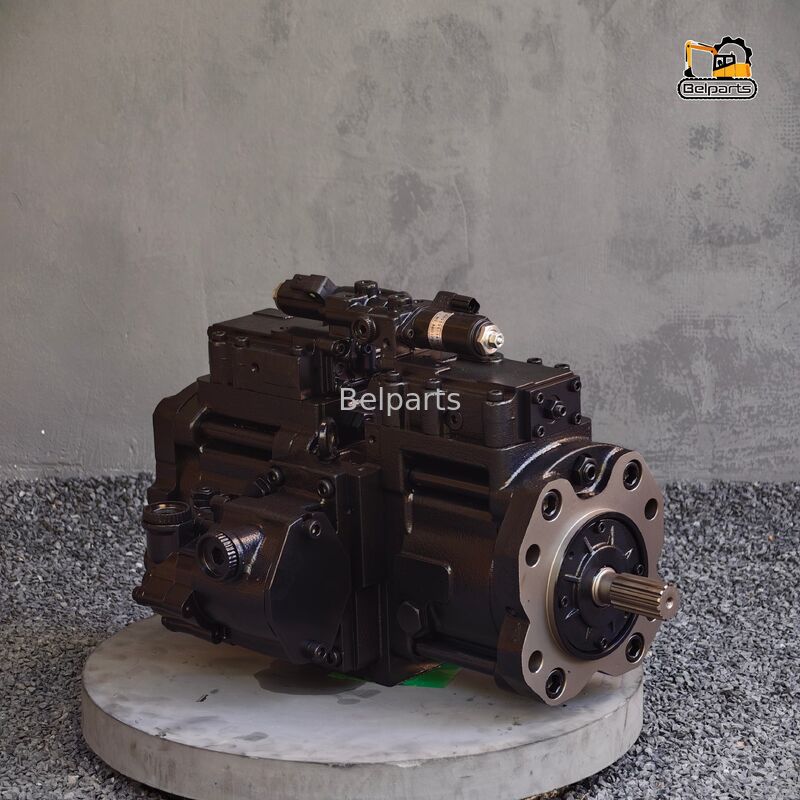

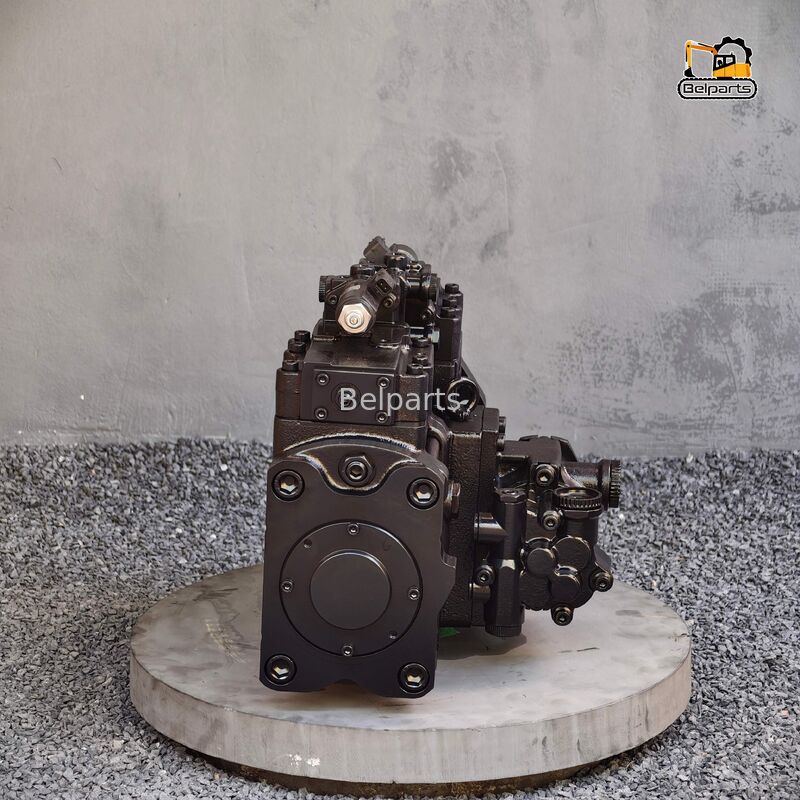

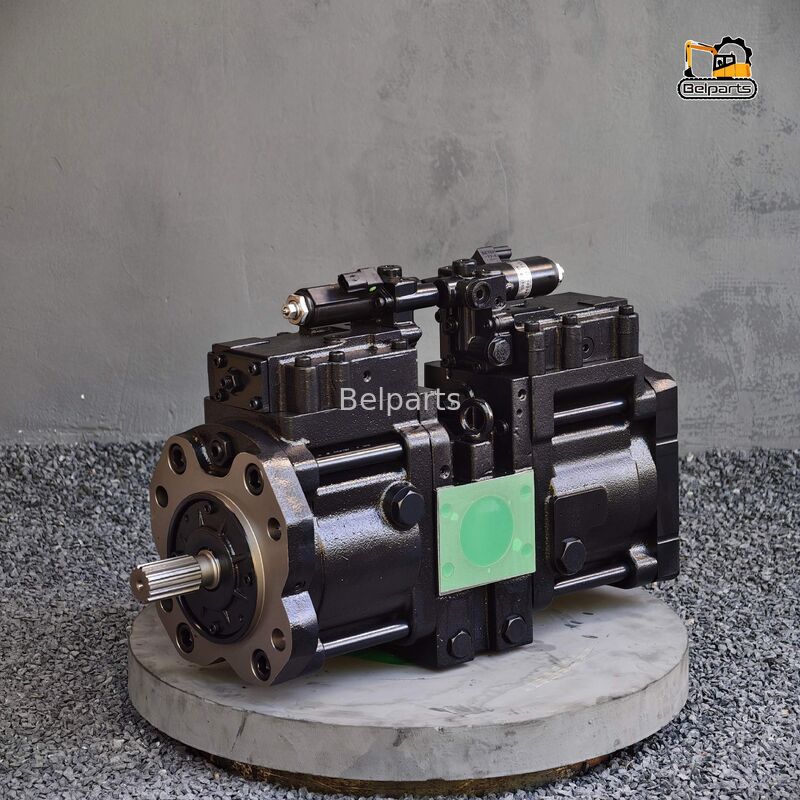

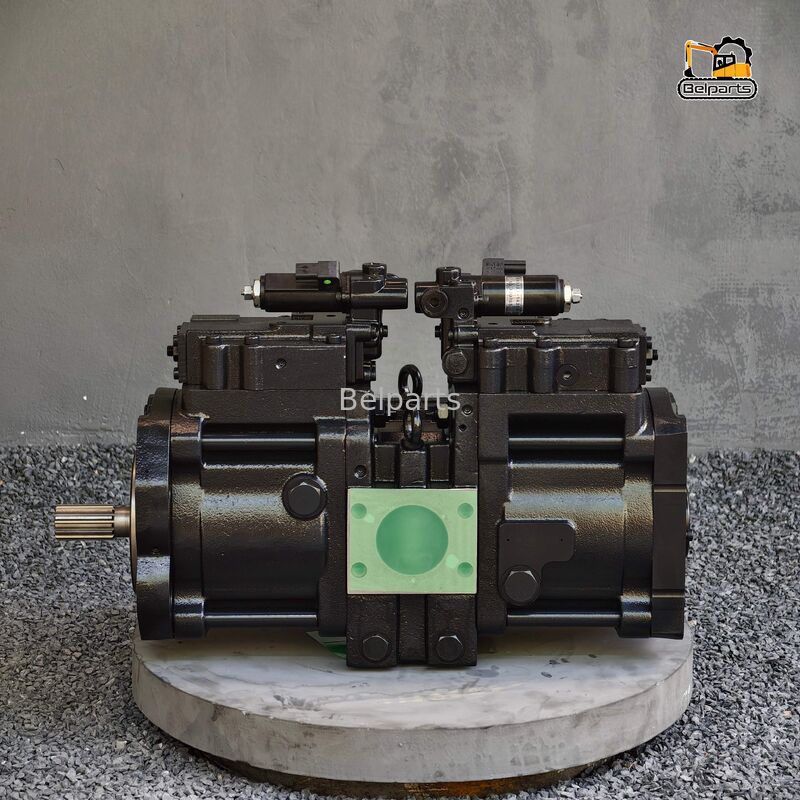

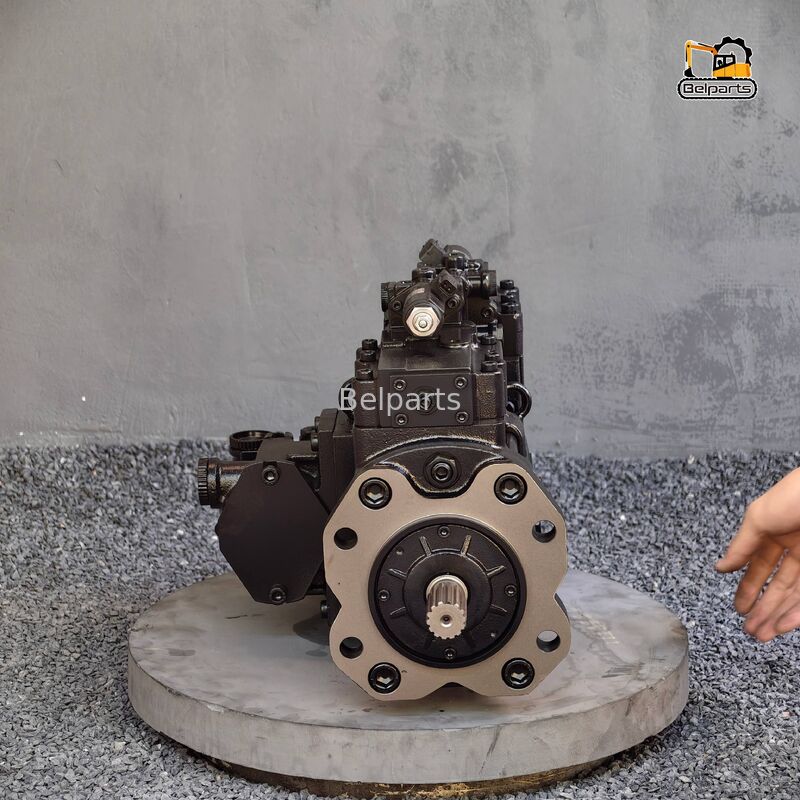

Product Detail Page: Main Hydraulic Pump YY10V00001F4 YY10V00001F5 YY10V00001F6 for New Holland E115SR EH130 E130 E135SR E135SRLC Excavator
1. Product Description
- Product Model
- K3V63DTP Tandem Variable Main Hydraulic Pump
- OEM Numbers
- YY10V00001F4, YY10V00001F5, YY10V00001F6
- Applicable Machine
- New Holland E115SR, EH130, E130, E135SR, E135SRLC mid-size excavator
- Quality Options
- Genuine Equivalent / Premium Aftermarket Grade
- Core Usage
- Core hydraulic power supply for digging, traveling, swing and all auxiliary attachment operations
- Factory Inspection
- Full hydraulic pressure aging test up to 35MPa finished before outgoing delivery
- Warranty
- 12-month full warranty with free component replacement for manufacturing defects
- MOQ
- 1 unit, sample and bulk wholesale orders both acceptable
- Lead Time
- In-stock items dispatched within 1-3 working days upon payment confirmation
- Shipping Period
- Air/Express transit:3-7 working days; Sea freight delivery:30-45 calendar days based on destination port
- Target Customer
- Global excavator repair workshops, equipment fleet operators and spare parts wholesale distributors
2. Key Features & Specifications
Core Key Features
- Twin tandem variable displacement piston structure with integrated built-in pilot gear pump, perfectly matching original factory hydraulic circuit layout of listed New Holland excavator models;
- High-density alloy cylinder block with advanced surface quenching treatment to extend overall wear service life against long-hour heavy-load operation;
- High-performance fluorine rubber sealing components to avoid internal and external oil leakage under ambient temperature ranging from -22℃ to +85℃ and high system pressure working condition;
- Equipped with LS load sensing control plus horsepower cut-off regulator, effectively reduce redundant power loss and lower hydraulic oil operating temperature to improve fuel economy;
- Precisely calibrated internal rotating assembly to cut down running vibration and operational noise, stabilizing continuous output flow and prolong pump service lifespan.
Exact Technical Specifications (Factory Standard Parameter)
- Nominal Combined Displacement
- 126 cc/rev for dual main pump, pilot gear pump displacement 16 cc/rev
- Rated Working Pressure
- 32.5MPa (325 Bar)
- Max Relief Setting Pressure
- 35MPa (350 Bar)
- Rated Output Flow
- 235L/min under engine rated speed of 2200RPM
- Max Allowed Input Rotation Speed
- 2850 RPM
- Input Shaft Structure
- Spline shaft, direct mounting to original engine flywheel housing
- Net Product Weight
- Around 68 KG
- Inlet & Outlet Port Thread
- Standard industrial thread matching original pipeline
- Recommended Hydraulic Oil
- ISO VG46 anti-wear hydraulic fluid
- Applicable Working Temperature
- -22℃ ~ +85℃
3. Compatibility Information
Compatible Excavator Models
New Holland E115SR, EH130, E130, E135SR, E135SRLC all serial mid-size crawler excavator versions
Cross Interchange OEM Part Number
- Main OEM Codes
- YY10V00001F4, YY10V00001F5, YY10V00001F6
- Base Pump Model Code
- K3V63DTP
- Cross Reference Part
- Compatible with Kobelco SK115SR, SK135SR, SK135SRLC corresponding machine serial numbers
Installation Remark
Direct bolt-on replacement without chassis modification or pipeline refitting, fully interchangeable with original factory fitted main pump. No additional machining required during field installation, compatible with original open-center hydraulic system configuration.
4. Technical Explanation
This tandem hydraulic pump adopts swash plate controlled variable piston design. Internal regulator automatically adjusts pump discharge volume by changing swash plate inclination angle according to real-time system load pressure to save unnecessary engine power consumption. Built-in anti-cavitation structure protects internal core parts from damage during cold startup in low-temperature environment, while integrated overflow valve safeguards whole hydraulic system from overpressure breakdown under sudden overload working conditions, suitable for earthmoving, demolition and landscaping construction projects with frequent variable load operations.
5. Supplier Advantages
- More than ten years specialized in excavator core hydraulic component production and matching service, provide accurate part confirmation service via OEM number and equipment model verification;
- Dual-quality grade supply plan covers genuine equivalent and cost-effective aftermarket versions, complete spare parts range for New Holland, Kobelco, Komatsu and other mainstream machinery brands to realize one-stop spare parts sourcing;
- Self-owned registered brand products exported to over 150 global regions, regular attendance in world-famous construction machinery exhibitions to update product and industry information;
- Spot inventory stored in Guangzhou warehouse, all finished products pass CE certification, flexible air, sea and international express logistics options to satisfy urgent breakdown repair and large bulk procurement demands.
6. FAQ Section for Search Optimization
Q1: Can YY10V00001F4 pump directly replace original pump for New Holland E135SRLC?
A: Yes, all our pumps follow original OEM dimension and hydraulic parameter standard strictly, plug-and-play installation without any mechanical alteration for all matched New Holland machine models.
Q2: What quality levels are available for this hydraulic pump?
A: Two options for customer selection, genuine-spec equivalent version with identical raw material and production craftsmanship as original factory component, and cost-efficient aftermarket version for regular daily maintenance replacement; both products meet or exceed original equipment performance benchmark.
Q3: How long is the valid warranty period?
A: Every finished pump carries 12-month official warranty coverage; free spare part replacement is offered once verified manufacturing quality defect happens within warranty validity period, factory production faults are fully covered under warranty clauses.
Q4: What available shipping ways for bulk purchase orders?
A: Multiple global delivery choices including DHL, FedEx, UPS international express, air freight, sea freight and land transport. Express and air shipment deliver goods within 3-7 days, sea shipment needs 30 to 45 days subject to destination country and receiving port schedule.
Q5: Do you maintain ready stock for fast shipment?
A: Continuous stable spot stock maintained at domestic Guangzhou warehouse for YY10V00001F4/F5/F6 serial pumps, supporting small sample trial order and large volume wholesale quick delivery, urgent order can be processed within 24 working hours after deposit confirmation.
| # |
Part No. |
Description |
Qty |
| . |
YY10V00001F5 |
PUMP; ASSY |
1 |
| . |
YY10V00001F6C |
CORE-HYDRAULIC PUMP; Return Number |
1 |
| . |
YY10V00001F6R |
REMAN-HYD PUMP; SK115SRDZ-1E ASN YY04-06001, Reman for New P/N YY10V00001F4 |
1 |
| . |
YY10V00001F4 |
PUMP; ASSY |
1 |
| . |
YY10V00001F6 |
HYDRAULIC PUMP; ASSY |
1 |
| . |
YY10V00001F4 |
PUMP; ASSY |
1 |
| . |
YY10V00001F6 |
HYDRAULIC PUMP; ASSY |
1 |
| . |
YY10V00001F6C |
CORE-HYDRAULIC PUMP; Return Number |
1 |
| . |
YY10V00001F5 |
PUMP; ASSY |
1 |
| . |
YY10V00001F6R |
REMAN-HYD PUMP; SK115SRDZ-1E ASN YY04-06001, Reman for New P/N YY10V00001F4 |
1 |
| 4 |
YX46W00001F1 |
CASE ASSY.; GEAR (FOR F4 ONLY) SEE FIG. 09-049 |
1 |
| 4 |
YX46W00001F1 |
CASE ASSY.; GEAR (FOR F4 ONLY) SEE FIG. 09-049 |
1 |
| 6 |
YB35V00003F1 |
VALVE; ASSY, SOLENOID, SEE FIG. 09-006 |
2 |
| 6 |
YB35V00003F1 |
VALVE; ASSY, SOLENOID, SEE FIG. 09-006 |
2 |
| 7 |
YX10V00004F2 |
PUMP; ASSY, GEAR, SEE FIG. 09-037 |
1 |
| 7 |
YX10V00004F2 |
PUMP; ASSY, GEAR, SEE FIG. 09-037 |
1 |
| 8 |
YX10V00003F2 |
HYDRAULIC PUMP; PUMP ASSY (FOR F4, F5 ONLY) (NOT IN SERVICE) SEE FIG. 09-036 |
1 |
| 8 |
YX10V00003F2 |
HYDRAULIC PUMP; PUMP ASSY (FOR F4, F5 ONLY) (NOT IN SERVICE) SEE FIG. 09-036 |
1 |
| 9 |
YX10V01001F2 |
REGULATOR; ASSY, SEE FIG. 09-038 |
2 |
| 9 |
YX10V01001F2 |
REGULATOR; ASSY, SEE FIG. 09-038 |
2 |
| 10 |
YX46W00001F2 |
CASE; ASSY, GEAR (FOR F5, F6 ONLY) SEE FIG. 09-049 |
1 |
| 10 |
YX46W00001F2 |
CASE; ASSY, GEAR (FOR F5, F6 ONLY) SEE FIG. 09-049 |
1 |
| 11 |
YX10V00003F3 |
HYDRAULIC PUMP; PUMP ASSY (FOR F6 ONLY) SEE FIG. 09-036 (NOT IN SERVICE) |
1 |
| 11 |
YX10V00003F3 |
HYDRAULIC PUMP; PUMP ASSY (FOR F6 ONLY) SEE FIG. 09-036 (NOT IN SERVICE) |
1 |
