उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
Belparts
प्रमाणन:
CE
मॉडल संख्या:
पीसी200एलसी-5 पीसी200-5
Premium aftermarket replacement parts: 205-63-02100 / 206-63-53320

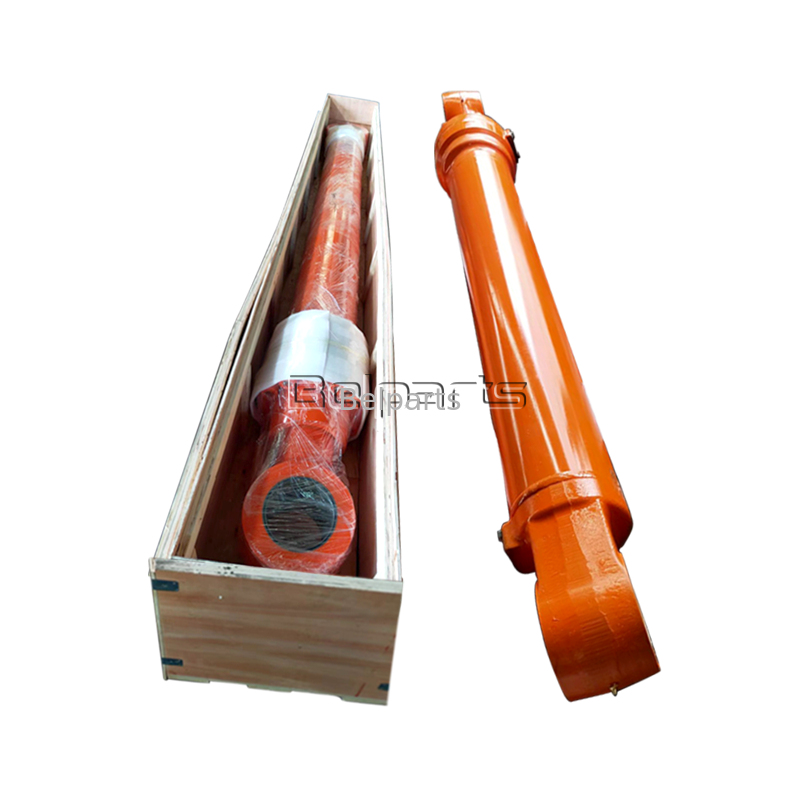

This high-grade aftermarket hydraulic boom cylinder is specially developed as a compatible replacement for Komatsu PC200LC-5 and PC200-5 classic medium excavators. As a core hydraulic component, it manages the lifting and lowering movements of the boom, widely applied in municipal construction, site leveling and general earthmoving projects.
All units are manufactured in strict accordance with original OEM specifications, featuring identical mounting dimensions, pin hole spacing and hydraulic port configuration. Operators can complete direct bolt-on installation on site without any cutting, welding or secondary adjustment work.
| Item | Specification |
|---|---|
| Product Name | Hydraulic Boom Cylinder |
| Applicable Model | Komatsu PC200LC-5, PC200-5 |
| OEM Part Number | 205-63-02100, 206-63-53320 |
| Product Grade | Brand New High-Quality Aftermarket |
| Warranty | 12 months against manufacturing defects |
| MOQ | 1 unit, sufficient stock for immediate delivery |
| QC Standard | ISO9001 certified, full hydraulic pressure and cyclic tests before shipment |
| Spec Item | Data |
|---|---|
| Bore Diameter | 115mm |
| Piston Rod Diameter | 75mm |
| Working Stroke | 1260mm |
| Rated Working Pressure | 31.4MPa |
| Factory Test Pressure | 47.1MPa (1.5 times the rated working pressure) |
| Barrel Material | High-tensile seamless alloy steel with precision inner honing |
| Piston Rod | 40CrMo heat-treated steel, 28~32μm hard chrome plating, HRC68~72 for reliable wear resistance and anti-deformation performance |
| Matching Seal Kit PN | 205-63-02100K |
| Working Temperature | -25℃ ~ +85℃ |
| Structure | Double ear lugs with quenched copper wear bushings, built-in buffer device to mitigate impact during operation |

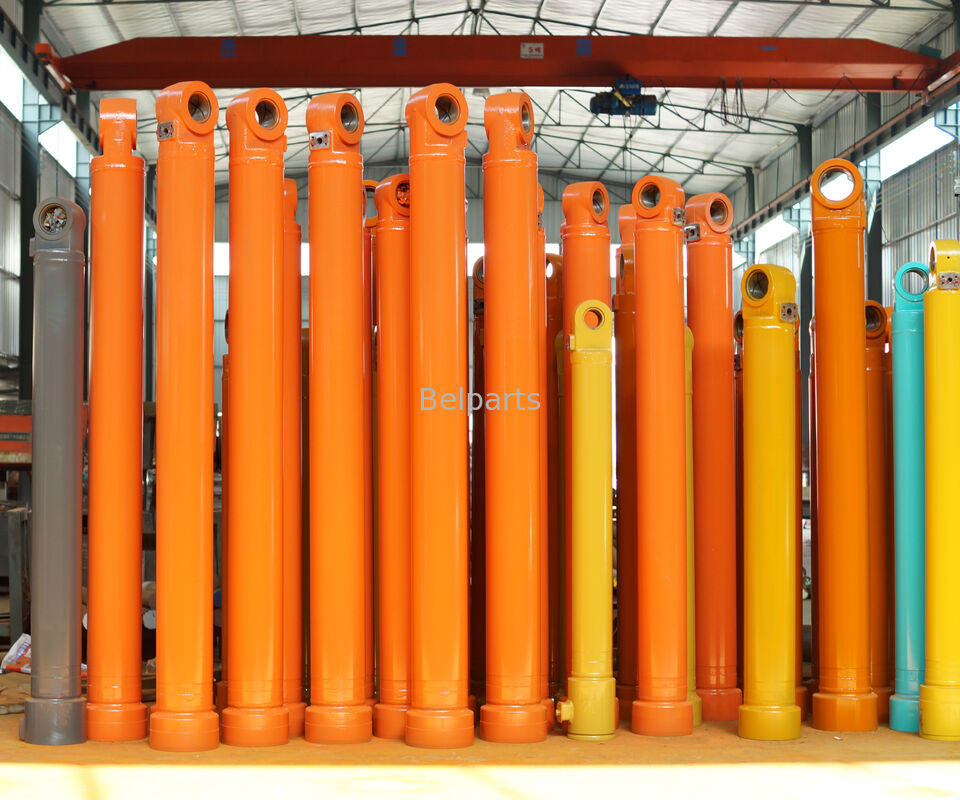

Our manufacturing facility has focused on producing hydraulic cylinders for early-generation Komatsu medium excavators for over a decade. We provide a complete lineup of boom, arm and bucket cylinders for PC200 series and other classic models. Our products have gained wide recognition and are continuously exported to aftermarket markets across Africa, Southeast Asia and the Middle East.
