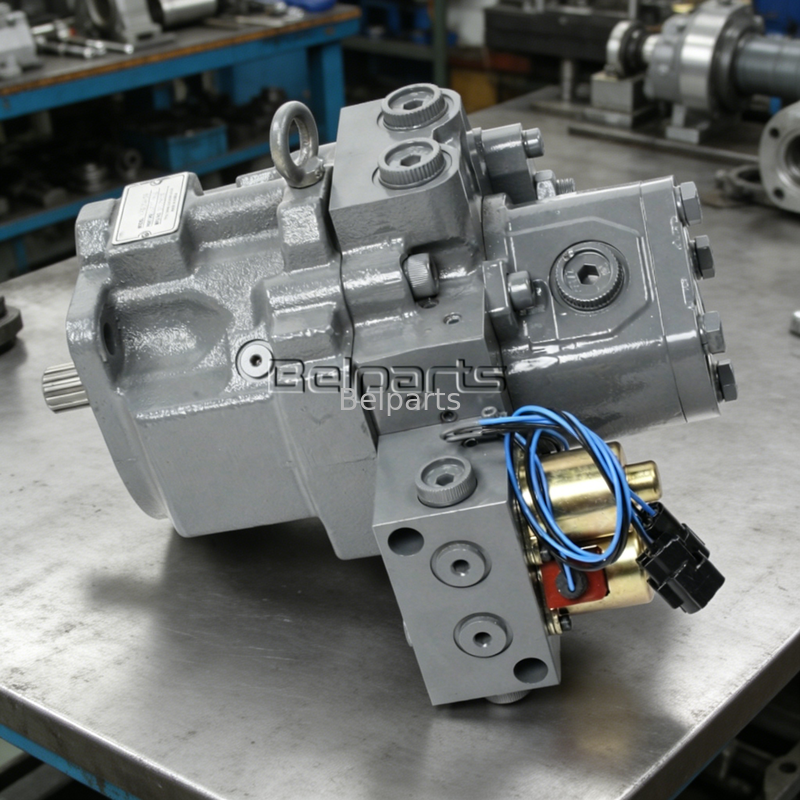

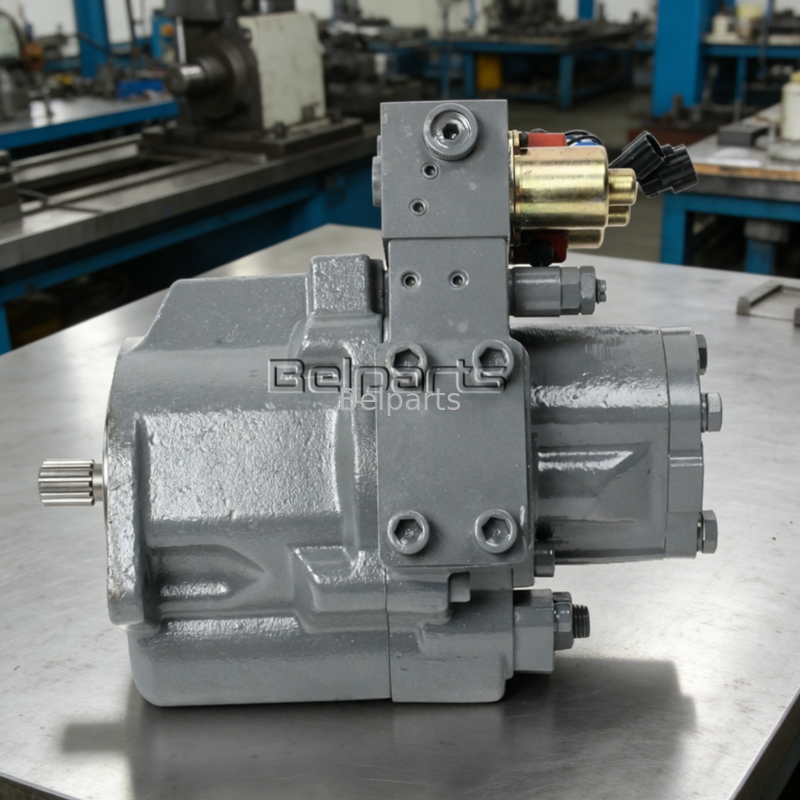

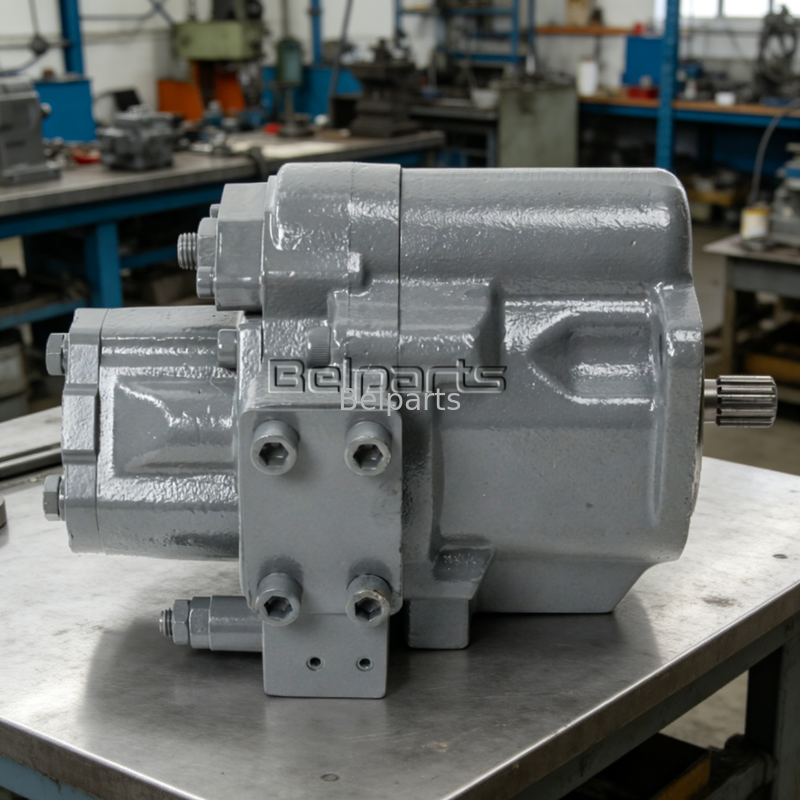

Name: YANMAR B27 B27-2 B27-2A B27-2B Main Hydraulic Pump 172142-73100 For Mini Excavator Repair Part
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: बी27 बी27-2 बी27-2ए बी27-2बी
Price: 475.00 USD
Availability: InStock

घर > उत्पादों > हाइड्रोलिक पंप खुदाई के पुर्जे >

YANMAR B27 B27-2 B27-2A B27-2B Main Hydraulic Pump 172142-73100 For Mini Excavator Repair Part

उत्पत्ति के प्लेस:

चाइना में बना

ब्रांड नाम:

BELPARTS

प्रमाणन:

2006/42/EC ISO9001

मॉडल संख्या:

बी27 बी27-2 बी27-2ए बी27-2बी

हमसे संपर्क करें

बोली मांगें

YANMAR B27 B27-2 B27-2A B27-2B Main Hydraulic Pump 172142-73100 For Mini Excavator Repair Part

उत्पाद का विवरण

गुणवत्ता:

मूल ब्रांड पुनर्निर्माण

लदान:

समुद्र / वायु / एक्सप्रेस डीएचएल फेडेक्स यूपीएस

नमूना:

बी27 बी27-2 बी27-2ए बी27-2बी

आवेदन:

खुदाई के यंत्र

भाग संख्या:

172142-73100

प्रकार:

AP2D14

गारंटी:

1 वर्ष

नाम का हिस्सा:

हाइड्रोलिक पंप

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

मूल्य

Negotiated price

पैकेजिंग विवरण

लकड़ी के केस की पैकिंग

प्रसव के समय

1 ~ 5 दिन

भुगतान शर्तें

टी/टी, व्यापार आश्वासन, पेपैल, एल/सी, डी/पी, डी/ए, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

नया

संबंधित उत्पाद

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

सबसे अच्छी कीमत पाएं

एक्सकेवेटर मुख्य पंप R55-7 R60 हाइड्रोलिक पंप 31M8-10020 31M8-10021 हुंडई के लिए

सबसे अच्छी कीमत पाएं

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

सबसे अच्छी कीमत पाएं

हाइड्रोलिक पंप कुबोटा KX161-3 KX163-5 KX165 KX183-3 मिनी खुदाई करने वाला पार्ट्स KYB PSVL2-27CG-1 B0210-27001 RD411-61113

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

+86 19924616345

ron@belparts-china.com

86-020-32384870

अब संपर्क करें

उत्पाद का वर्णन

YANMAR B27 B27-2 B27-2A B27-2B Main Hydraulic Pump 172142-73100 For Mini Excavator Repair Part

OEM Part Number & Machine Compatibility

Yanmar OEM part number: 172142-73100
Original pump model: Nachi PVD-1B-29BP variable displacement piston pump assembly
Fully compatible mini excavator models: Yanmar B27, B27-2, B27-2A, B27-2B
Cross reference interchangeable part numbers: 172441-73100, 172422-73100, 172422-73101
Uniform mounting structure fits all generation variants of the B27 platform for direct replacement installation

Core Technical Specifications

Structure type	Variable axial piston main pump integrated with built-in pilot gear pump
Main pump displacement	29 cc/rev
Rated continuous working pressure	24.5 MPa
Preset maximum system relief pressure	31.4 MPa
Rotation speed	Matched to original engine rated speed configuration of B27 series excavator
Input configuration	Input shaft spline, mounting flange and all hydraulic port positions strictly follow OEM dimensional standards
Materials	Pump housing: ductile iron; internal pistons and valve plates: quenched wear-resistant alloy steel

Internal Structure & Functional Introduction

Main piston pump supplies high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing working movements
Integrated pilot gear pump provides stable oil supply for pilot control circuit and system pressure replenishment
Built-in power limiting regulator automatically adjusts pump output flow according to load changes, preventing engine stalling under heavy digging loads
Compact integrated design saves installation space inside the hydraulic compartment of small-sized excavators

Product Advantages

Exact 1:1 OEM casting dimension, consistent bolt layout and oil port layout, enabling plug-and-play replacement without pipeline or chassis modification
Every finished pump undergoes complete hydraulic bench testing for pressure, flow stability and internal leakage inspection before delivery
Complete set of maintenance spare parts including overhaul seal kits, piston assemblies, swash plates and valve plates are available for individual repair replacement
Unified specification compatible with all B27 serial variants, simplifying spare part stocking and inventory management

Packaging & Global Delivery Details

Input shaft and all oil ports are coated with anti-rust protective grease and sealed with dust plugs
Entire pump wrapped with moisture-proof plastic film and fixed inside export-grade solid wooden crate to prevent collision and damp damage during long-distance sea or air transit
In-stock items can be arranged for shipment within 3 to 5 working days after order confirmation
Multiple global shipping solutions available: international air express, sea LCL/FCL bulk shipment and overland truck transportation

Frequently Asked Questions

Q: Can this pump fit all B27, B27-2, B27-2A and B27-2B models directly?

A: Yes, part number 172142-73100 is universally applicable for all listed B27 generation machines, with identical installation size and matched hydraulic parameters for direct installation.

Q: Are individual repair components available for this hydraulic pump?

A: Matching overhaul seal kits, piston shoe assemblies, valve plates, swash plates and pilot gear pump spare parts are all in stock for partial overhaul maintenance.

Q: What does PVD-1B-29BP stand for?

A: PVD-1B-29BP is the original Nachi internal pump model code, while 172142-73100 is the exclusive OEM part number assigned by Yanmar for this complete pump assembly.
